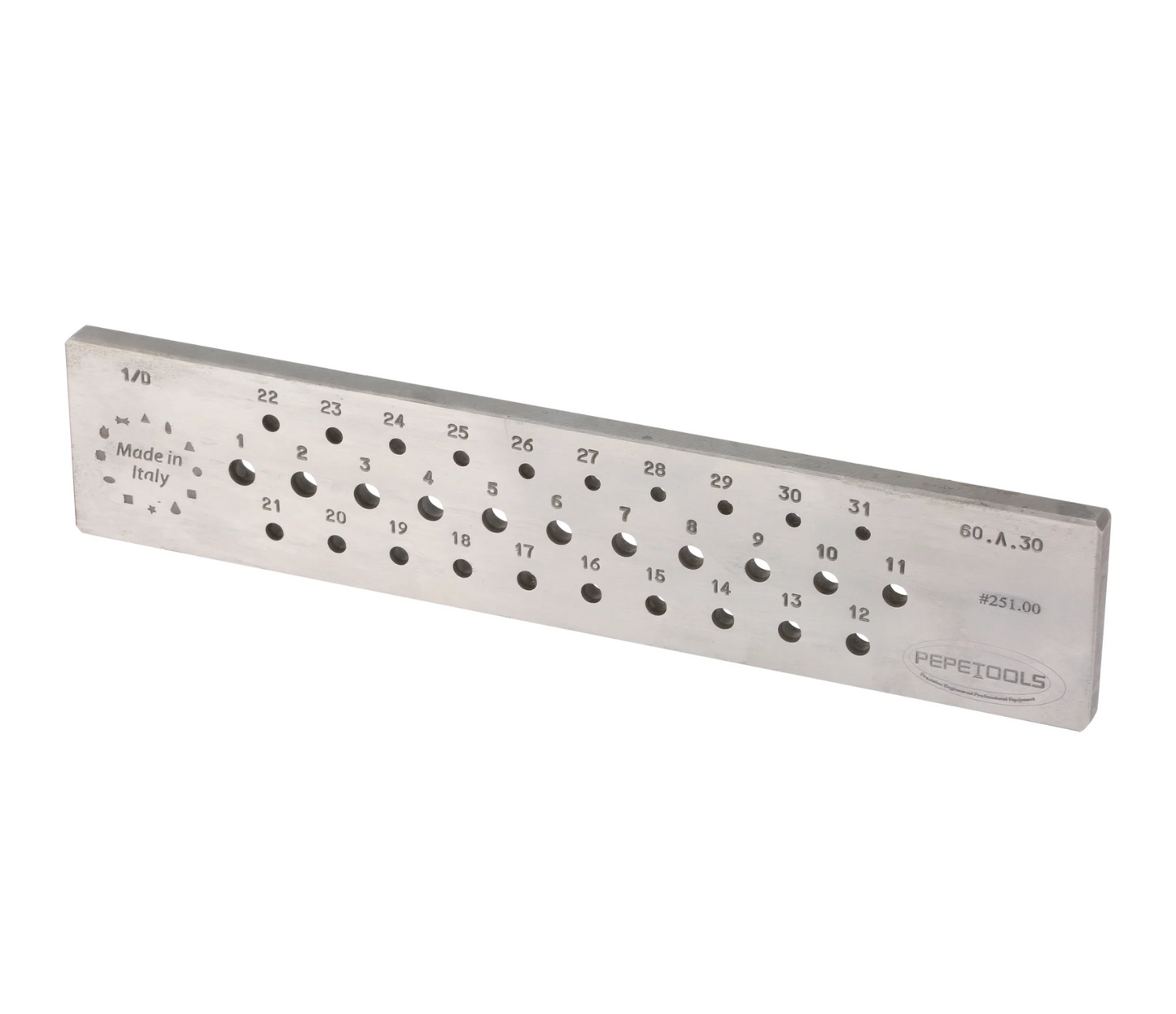

Pepe Tools Round Wire Draw Plate, 6mm - 3mm, 31 Holes, Hardened Steel
Pepe Tools Round Wire Draw Plate, 6mm - 3mm, 31 Holes, Hardened Steel
VAT is included at checkout
Couldn't load pickup availability
About Round Wire Draw Plate, 6mm - 3mm, 31 Holes, Hardened Steel
Achieve precise wire drawing results with this high-quality Round Wire Draw Plate. Manufactured in Italy to Pepetools specifications, this draw plate is precise and powerful. Made from hardened steel and accurately machined with smoothly beveled holes, this plate has 31 holes ranging from .236 (6mm) to .118" (3mm) in diameter (2 ga. - 8ga.). Get the results you need with the robust and reliable Round Wire Draw Plate.
With 31 holes, there is a .1mm step down from 6mm down to 3mm, this consistent sizing allows for perfectly round wire out of gold, copper, silver, platinum, and more. Use with our without a draw bench - always anneal between pulls. It is also advised to use a lubricant such as Blade Butter to help the decrease friction during the process
Specs:
- 31 Holes
- 6MM to 3MM with .1MM step down per hole
- 50MM tall by 220MM wide by 9mm thick
- Made in Italy, Designed by Pepetools
- Ground surface finish, wire EDM holes for precision
- Hardened tool steel
| Hole Number | Hole Diameter (mm) |
|---|---|
| 1 | 6.000 |
| 2 | 5.900 |
| 3 | 5.800 |
| 4 | 5.700 |
| 5 | 5.600 |
| 6 | 5.500 |
| 7 | 5.400 |
| 8 | 5.300 |
| 9 | 5.200 |
| 10 | 5.100 |
| 11 | 5.000 |
| 12 | 4.900 |
| 13 | 4.800 |
| 14 | 4.700 |
| 15 | 4.600 |
| 16 | 4.500 |
| 17 | 4.400 |
| 18 | 4.300 |
| 19 | 4.200 |
| 20 | 4.100 |
| 21 | 4.000 |
| 22 | 3.900 |
| 23 | 3.800 |
| 24 | 3.700 |
| 25 | 3.600 |
| 26 | 3.500 |
| 27 | 3.400 |
| 28 | 3.300 |
| 29 | 3.200 |
| 30 | 3.100 |
| 31 | 3.000 |
