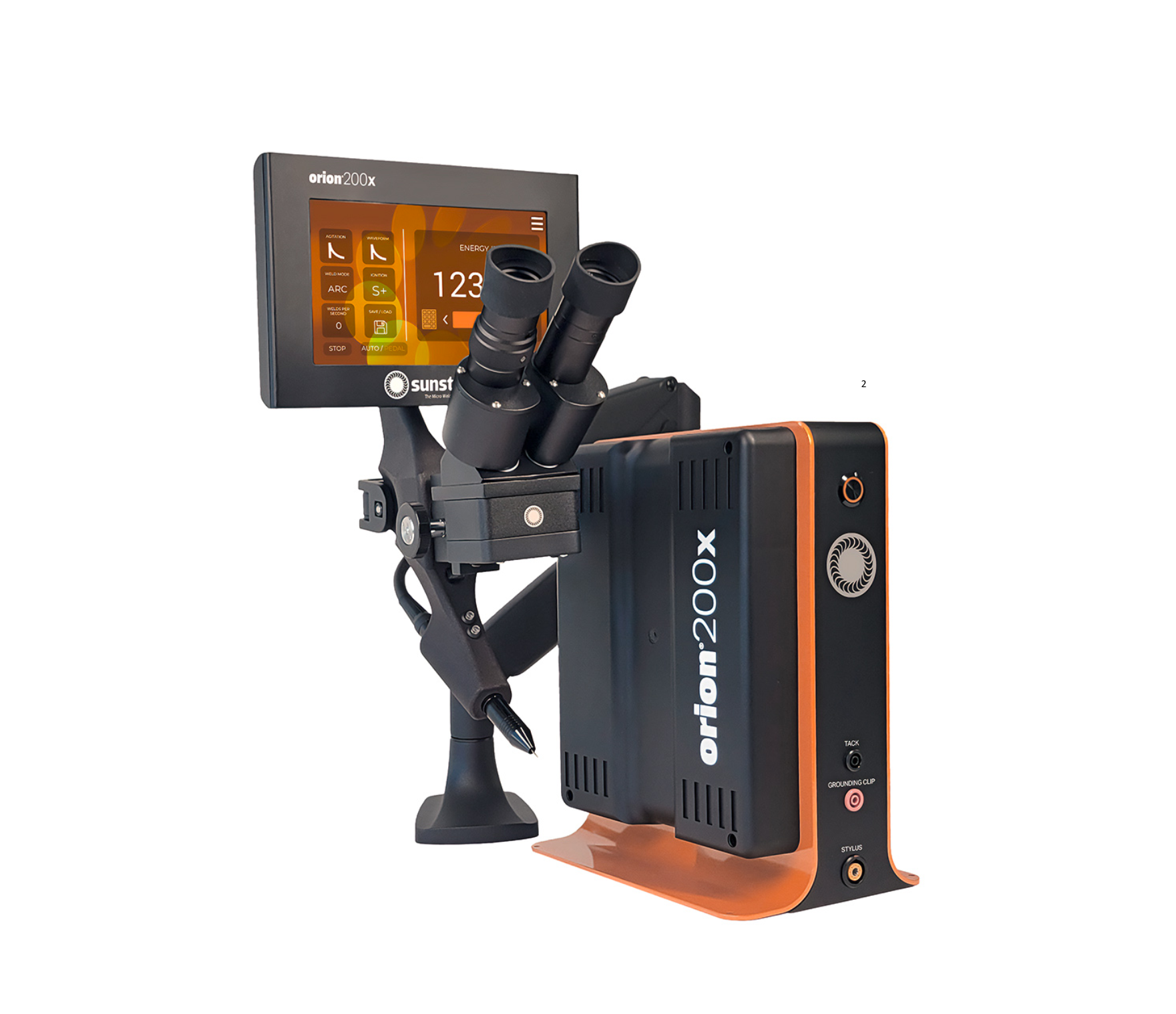

Orion 200x - High-End Micro Welding with Ultimate Precision
The Orion 200x is the most powerful pulse arc welder in the x-series lineup. Delivering up to 200 joules of energy and finely adjustable in 0.1-joule increments, it offers unmatched accuracy for welding precious metals such as gold, silver, platinum, and stainless steel.
This advanced system combines a responsive 8-inch touchscreen, articulating arm, built-in 5x optics, and stylus control - making it the ideal solution for professional jewellers and workshops that demand exceptional performance and precision.
- Extended power range: 0.15 - 200 joules, adjustable in 0.1-joule steps
- Tru-Fire Technology - delivers consistent welds with minimal misfires
- Weld spot size: approximately 0.1 - 4.5 mm for flexible application
- Premium 8-inch touchscreen - clear, intuitive, and fully customisable
- 5x optics with safety shutter - excellent visibility and eye protection
- Argon-ready - supports clean, oxidation-free welds with a superior finish
- Swivelling design - compact and bench-mountable for space-saving versatility
- Includes 3-year manufacturer warranty
Included in delivery:
- Orion 200x Welding System
- Orion x-Series Microscope Arm Unit
- Orion x-Series Screen Mount (attached to the microscope arm)
- Welding cable and fiber brush
- Welding stylus handpiece and cross-locking tweezers
- Display connection cable and bypass clip
- Alligator clip cable and optional microscope mount hardware
- Foot pedal
- Eyepiece cover
- Shielding gas hose
- Allen key set
- Electrode 1.0 mm
- Comprehensive user manual (English)
Important: To operate the Orion 200x, argon gas and a compatible pressure regulator are required - not included.
Pro tip: For optimal results - especially with silver - we recommend using high-quality argon gas. The Orion Gas Connection Kit (Ref. No. 4233.SET) includes all essential components for a complete and professional setup.
Technical Specifications:
- Brand: Orion
- Display: 8-inch touchscreen
- Languages: English, German, Italian, multiple
- Magnification: 5x
- Spot size: ~0.1 - 4.5 mm
- Weight: 5 kg
- Welding energy: 0.2 - 200 Ws (Joules)
- Welding modes: micro mode, pico mode, tack mode, ultra mode
- Welding speed: up to 4 spots per second
