JURA Graver Plus

JURA Graver Plus

£3,550.00 GBP
£3,550.00 GBP
Sale Sold out
Shipping calculated at checkout.

VAT is included at checkout

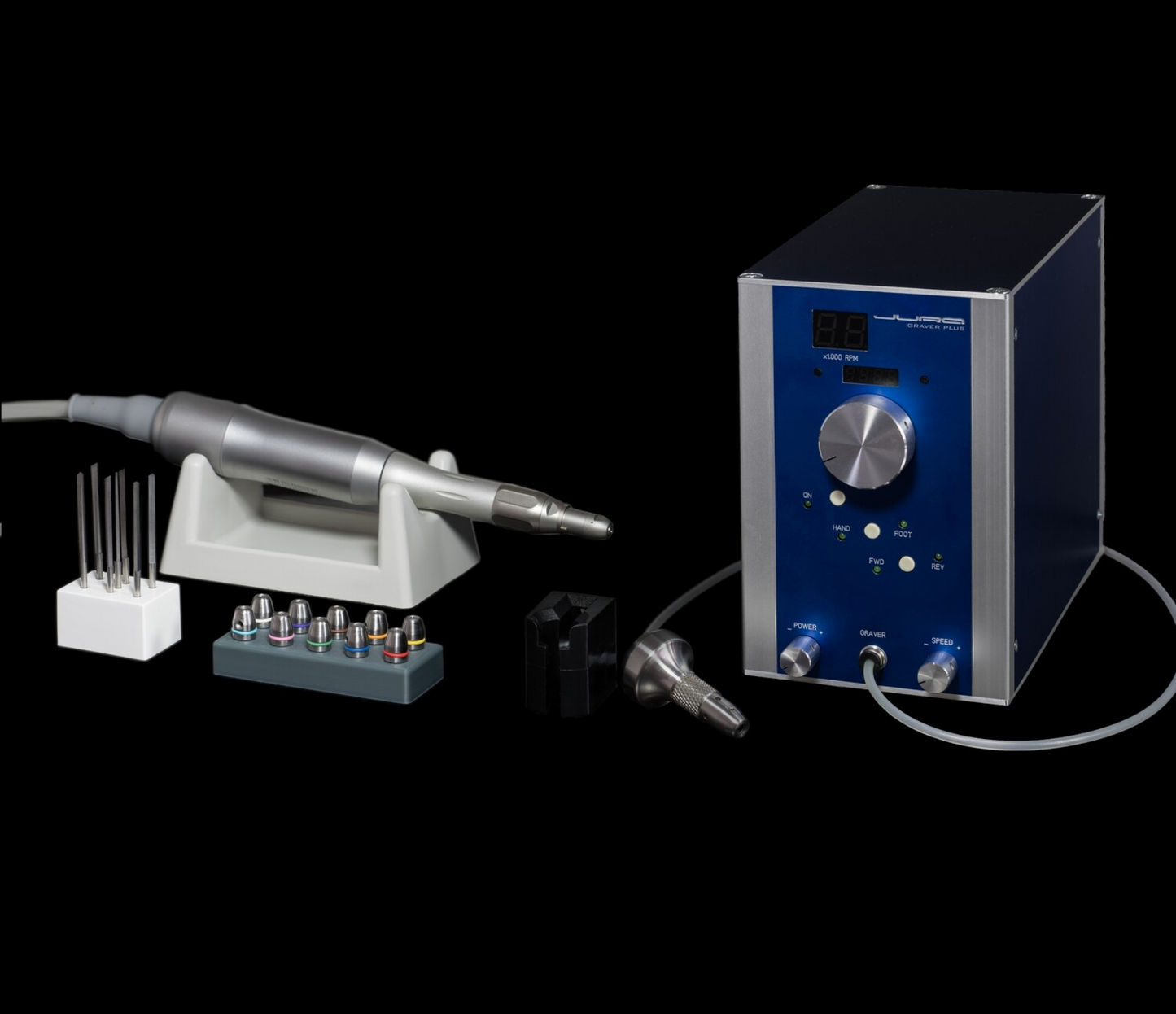

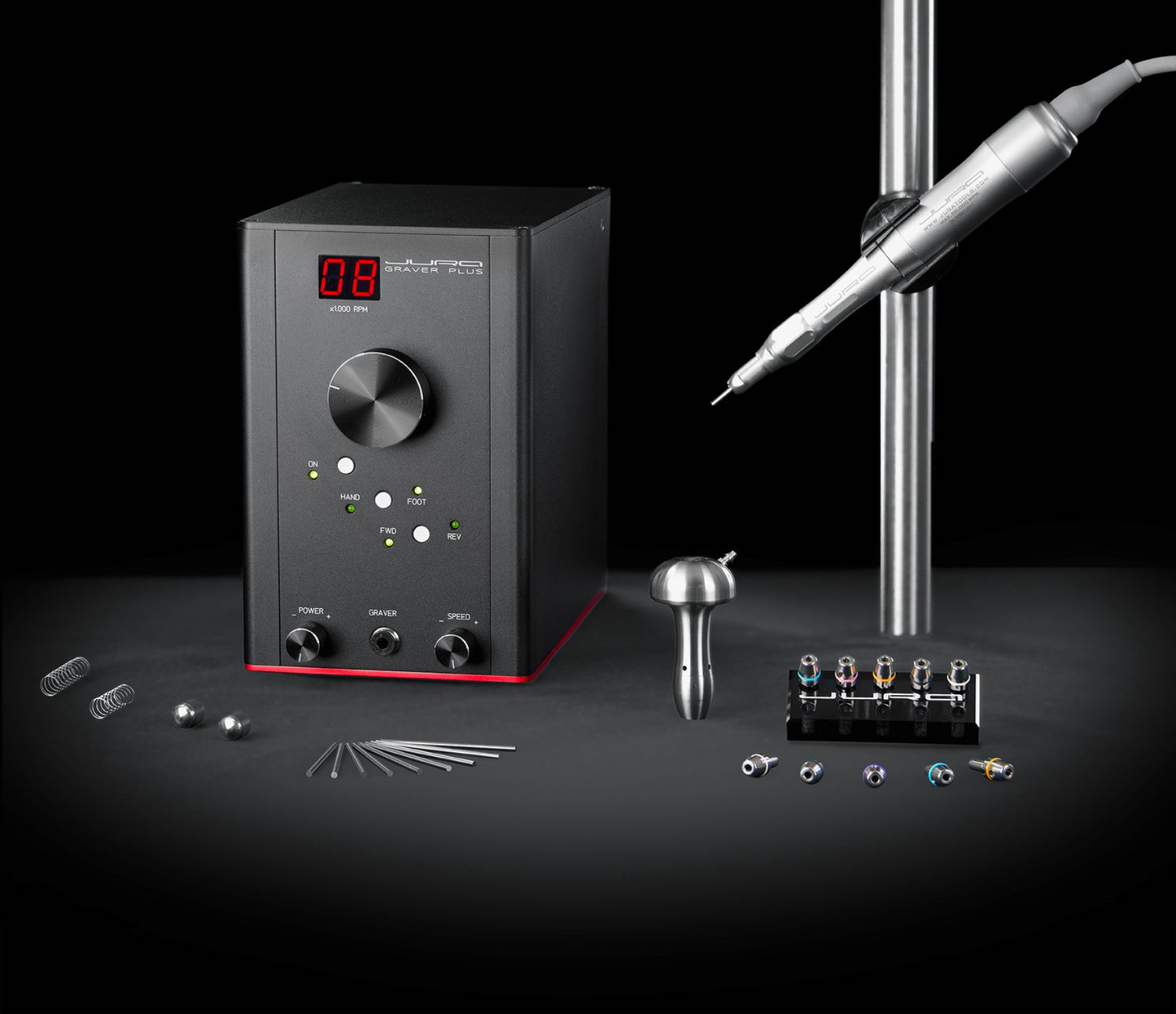

The JURA Graver Plus System seamlessly integrates advanced pneumatic engraving and high-torque micromotor technologies into one compact, professional-grade solution. Perfect for jewellers, engravers and craftsmen seeking precision and versatility, this system enables smooth engraving, drilling, polishing and detailing - without the need for a bulky compressor.

Manufactured in our own facility in the Netherlands and backed by decades of expertise from Jura - the legendary master diamond setter - this system delivers exceptional reliability, finesse and control across all common jewellery metals including gold, platinum, titanium and stainless steel.

Made to order - production time approximately 6 weeks.

Who Should Choose the JURA Graver Plus System?

  • Professional jewellers and engravers who want pneumatic and micromotor functions in one unit
  • Jewellery schools or workshops requiring a comprehensive training solution
  • Studios where silent, compact and compressor-free systems are essential
  • Craftsmen looking to maximise workspace efficiency with one complete system

What’s Included

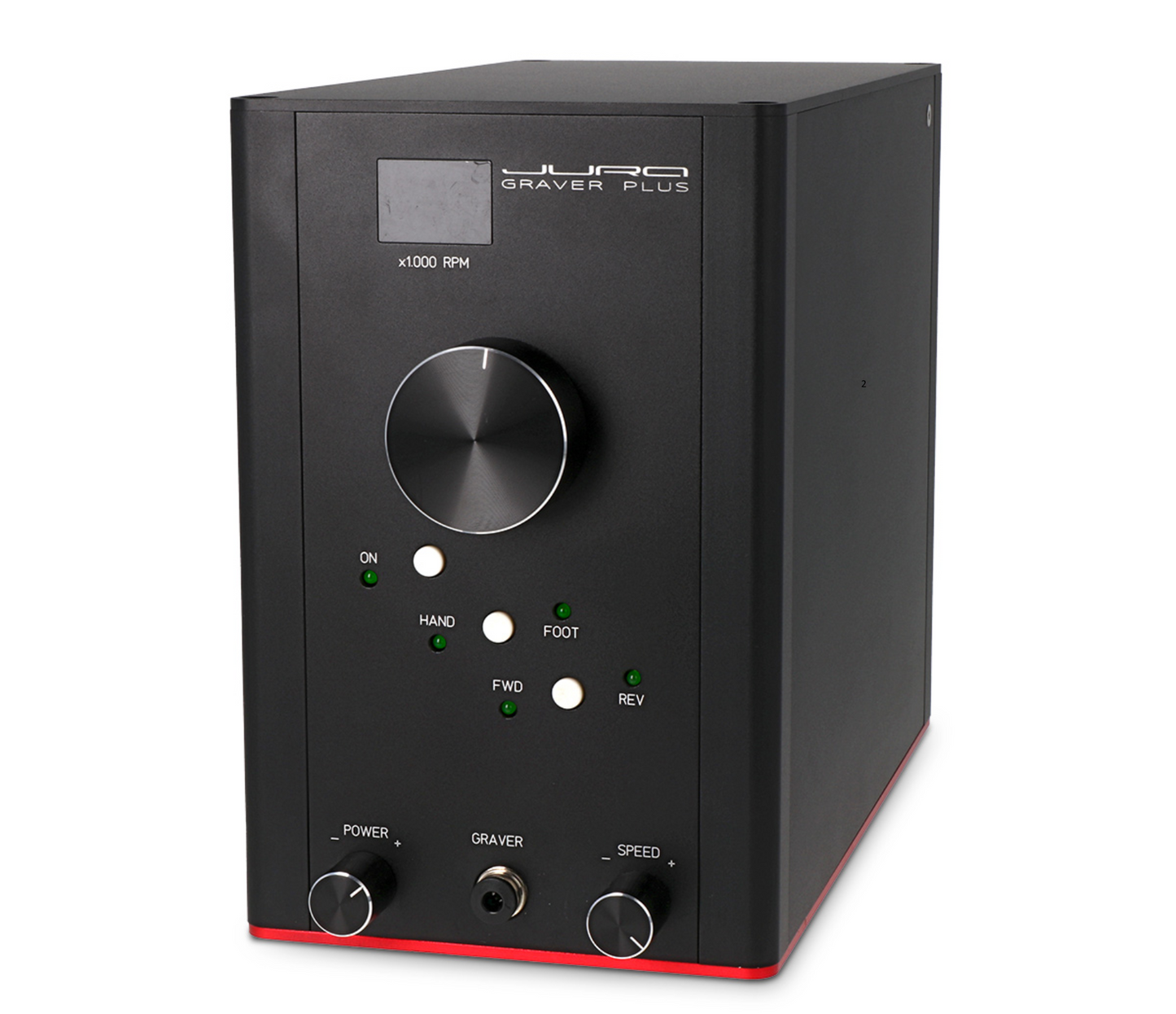

  • 1x Control Box with digital RPM, stroke control and air pressure - dual voltage
  • 1x Power Cable - EU or US
  • 1x Foot Pedal for Graver
  • 1x Foot Pedal for Micromotor
  • 1x Next Generation Pneumatic Engraving Handpiece with air relief
  • 2x Pistons
  • 2x Springs
  • 10x Quick Changes with colour coding - Ø2.35 mm
  • 1x Organizer for Quick Changes
  • 1x Set of Graver Blanks (10 pcs) Ø2.35 mm
  • 1x 1.5m Silicone Hose
  • 1x EQ.14.01 Micromotor Handpiece - slim and lightweight (max Ø2 mm burs)
  • 1x Bench Holder for Micromotor Handpiece

Note: GRS-compatible quick changes are supplied without an organizer.

Choose Your Handpiece & Possible Upgrades

Pneumatic Handpieces

  • EQ.GH.NG (Next Generation) - Adjustable air relief for refined stroke control, ideal for pavé, sculptural and high-precision engraving.
  • EQ.GH.CC (GRS-Compatible) - Perfect for users transitioning from GRS systems. Compatible with Jura-style GRS quick change holders (2.35 mm only). For other sizes, original GRS holders are required.
  • EQ.GH.FS (Forma Style) - Available as a complete handpiece with air relief, or as an adapter. Replace the palm cap with the Forma adapter for classic hammering and sculptural work.

Micromotor Handpieces

  • EQ.14.02 (JURA by NSK - Slim Nose) - Durable and ergonomic for setters applying more pressure. Accepts up to Ø3 mm stones. Max 40,000 rpm.
  • EQ.14.03 (JURA by NSK - Heavy-Duty) - Ideal for polishing and torque-heavy work. Larger grip with adjustable chuck (Ø2.35 mm). Designed for extended use.

Additional gravers and quick changes are available in Ø3.2 mm and Ø1.8 mm upon request.

Key Features

  • Compressor-free pneumatic engraving system combined with a high-torque micromotor
  • Brushless micromotor with up to 35,000 rpm and 7.8 N·cm torque
  • Silent, low-vibration operation for precise control
  • Forward and reverse rotation with foot or hand control options
  • CE compliant
  • Warranty: 1 year on handpieces, 2 years on electronics

Comparison Table - JURA Machines

Feature Micromotor Only Graver Only Graver Plus Graver PRO
Pneumatic Engraving ❌ ✅ ✅ ✅
Micromotor Function ✅ ❌ ✅ ✅
Hot/Cold Air Blowers ❌ ❌ ❌ ✅ (Compressor required)
Compressor Required ❌ ❌ ❌ ✅ (for blowers only)
Best For Drilling, burring, polishing Engraving, hammering, filing All-in-one system All-in-one system + air blowers
